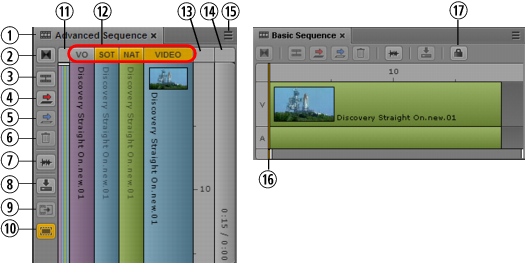

The Sequence Pane

	Control	Description
1	Sequence Pane tab	Move the mouse pointer over the tab to display information about the sequence. See Viewing Sequence Information.
2	Add Video Dissolve button	Adds a video dissolve (advanced sequence only). See Inserting Video Dissolves (Advanced Sequences Only).
3	Split button	Divides one or more segments into two at the position indicator. See Splitting a Segment.
4	Overwrite button	Performs an overwrite edit. See Performing an Overwrite Edit in a Basic Sequence and Performing an Overwrite Edit in an Advanced Sequence.
5	Replace button	Performs a replace edit. See Performing a Replace Edit.
6	Delete Segment button	Deletes the selected segment from the sequence. See Moving or Deleting Segments in the Timeline.
7	Audio pane button	Opens the Audio pane or brings it to the front.
8	Save button	Saves the sequence in the Interplay Production or Interplay MAM database. See Saving a Sequence.
9	Extend/Retract button	(Script sequence only) Extends a segment beyond the boundary of a timing block or retracts it. See Extending a Segment into Another Timing Block.
10	Show/Hide Empty Timing Blocks	(Script sequence only) Shows or hides empty timing blocks. See Showing and Hiding Empty Timing Blocks.
11	Sequence zoom bar	Lets you enlarge a section of the timeline. Displays segments, tracks, and other sequence information. See Using the Sequence Zoom Bar.
12	Track selectors	Lets you select the track for an insert edit, an overwrite edit, or a split segment operation (advanced sequence only). See • Performing an Insert Edit in an Advanced Sequence • Performing an Overwrite Edit in an Advanced Sequence • Splitting a Segment
13	Timecode bar	Displays timing for the sequence in hours, minutes, and seconds, depending on the length of the loaded asset. Click in the timecode bar to drag the position indicator, Right-click in the timecode bar to access certain commands.
14	Timing block header	(Script sequence only) Displays the duration of the media currently contained in the timing block and the duration of the text in the associated story segment. See Working with Timing Displays.
15	Pane Menu button	Provides options for working with sequences.
16	Position indicator	Lets you scrub through a clip or sequence.
17	Lock button	Lets you manually lock a sequence to prevent other users from editing the same sequence. See Locking a Basic Sequence (Interplay \| MAM).

Menu Item	Description
Undo	Undoes the previous edit. See Undoing and Redoing an Action in the Sequence Pane.
Redo	Redoes the next previously undone edit.
Save As	Lets you rename and save a sequence in a different location. See Saving a Version of a Sequence.
Save Sequence	Saves the sequence in its current location in the Interplay Production or Interplay MAM database. See Saving a Sequence.
Insert Dissolve	Inserts a video dissolve (advanced sequence only). See Inserting Video Dissolves (Advanced Sequences Only).
Split	Divides one or more segments into two at the position indicator. See Splitting a Segment.
Delete item-name	Deletes the selected item (segment, effect, graphic)
Modify Start Timecode	See Modifying the Start Timecode.
Hide/Show Empty Timing Blocks	(Script segment only) Shows or hides empty timing blocks. See Showing and Hiding Empty Timing Blocks.
Transcode	Sends a sequence to mixdown. See Transcoding Assets.
Show Media Status	Displays colored segments that represent the media status. See Displaying Media Status in the Timeline.
Audio Scrubbing	Enables or disables audio scrubbing. A check mark shows that audio scrubbing is enabled. See Enabling Audio Scrubbing.
Orientation	Lets you select the orientation of the timeline and toolbar: horizontal or vertical. See Selecting a Horizontal or Vertical Timeline.
Help	Opens a Help topic that describes the Sequence pane and its functions.
