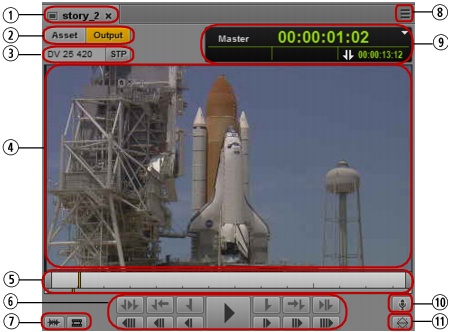

Display or Control | Description | |
1 | Title | Displays the name of a sequence loaded from the Interplay Production database or the title of a sequence loaded from the Interplay MAM database. The title of an Interplay MAM sequence might not match the name in the Assets pane. For more information, see Renaming Asset References. |
2 | Asset and Output buttons | Lets you switch views between an asset loaded in Asset mode and a sequence loaded in Output mode. |
3 | Video format display | Displays the target resolution of the selected Send to Playback profile. Move your mouse pointer over the display to see the complete label for the target resolution. |
STP button | Click this button to send the loaded sequence to a playback device. For more information, see Sending a Sequence to a Playback Device. For Interplay Production sequences only. | |
4 | Media viewer | Displays and plays media for the sequence loaded in the script editor. Error messages concerning media appear at the top of the Media viewer. The speed display for J-K-L play is shown in the upper right. For more information, see Using the J-K-L Keys for Playback. |
5 | Media Timeline and Media zoom bar | • The Media Timeline is a graphical representation of the length and time span of an asset or sequence. The Media Timeline includes timing marks, a position indicator, and other controls. For more information, see Working in the Media Timeline. • The Media zoom bar lets you enlarge a section of the Media Timeline. For more information, see Using the Media Zoom Bar. |
6 | Media controls | Let you play, pause, and step through the sequence. For more information, see Playing Assets and Stepping Through Assets. Controls for working with In points and Out points are disabled in Output mode. |
7 | Audio Pane button | Click this button to open or bring forward the Audio pane. |
Match Frame button | Click this button to load a master clip that contains a selected frame of a sequence or subclip. See Using Match Frame. | |
8 | Pane Menu button | Provides options for controlling the display and sending to playback. For more information, see Media Pane Menu Options (Output Mode). |
9 | Timecode displays | Provides timecode information for the loaded sequence. For more information, see Using the Timecode Displays. |
10 | Voice-over button | Displays the controls for creating a voice-over. For more information, see Recording a Voice-Over. Advanced sequences only. |
11 | Review for Playback button MultiRez button | Enables play of media in the send-to-playback target resolution. For more information, see Reviewing in the STP Target Resolution. If this option is enabled, the button also lets you choose to play back at the highest resolution. See Playing Back at the Highest Resolution. For Interplay Production sequences only. |
