The Audio Pane for Asset Mode and Basic Sequences

The Audio pane displays the same controls when you load an asset in Asset mode and when you load a basic sequence in Output mode. In both cases, the Audio pane shows the audio tracks that are available for monitoring and lets you select which tracks to monitor. You can monitor the audio level in the audio meters, and use the audio slider to adjust the level.

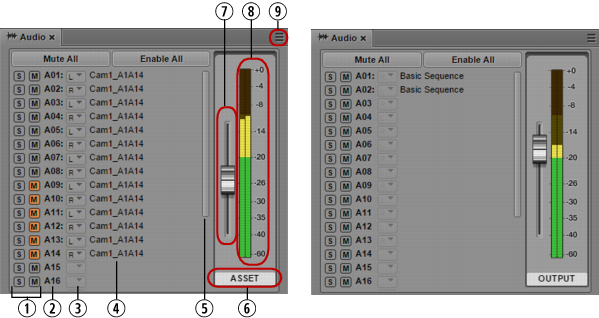

	Control	Description
1	Solo and Mute buttons	Click the S (Solo) button to monitor only the selected track or tracks. Click the M (mute) button to mute the selected track or tracks. Gray M buttons indicate audio is enabled. See Audio Monitoring for Assets and Basic Sequences.
2	Track identifiers	Identifies 24 audio tracks, numbered A01 to A24. Use the scroll bar to display tracks not currently displayed.
3	Panning menus	Display the current panning. In the current release, the panning menus are inactive. See Panning for Assets and Basic Sequences.
4	Clip name or sequence name	Displays the name of the asset for each track in the asset.
5	Scroll bar	Drag the scroll bar to display tracks not currently displayed.
6	Mode identifier	Identifies which mode is selected in the Media pane.
7	Master volume slider	Click and drag the slider to adjust the volume level for overall audio mix in a clip or sequence. Adjustments are not saved. See Audio Monitoring for Assets and Basic Sequences.
8	Audio meters	Display the audio level for the mix of all tracks in the clip or sequence. There are two meters. For stereo output, each meter displays a separate level. For mono output, both meters display the same level. See Setting the Audio Mix.
9	Pane Menu button	Provides the following options: • Mix Mode: Select Stereo or Mono to specify the audio output. See Setting the Audio Mix. • Set Reference Level: Lets you set the reference level for audio monitoring. See Setting the Reference Level. The default is -20. • Help: Displays information about the audio pane. Use the Help control buttons to access other Help topics.
