Exporting Strata
You can export strata annotation together with the metadata of an asset. You have the following options:
• CSV: (Comma-separated value) file that you can open as a Microsoft Excel spreadsheet. Only information of the stratum open in the pane is exported. If you apply a filter to the stratum open in the pane, only information of the segments that are shown in the pane is exported. See
Filtering a Stratum.
• Normal AXF: All strata and metadata information are written to an Attribute Exchange Format (AXF) file. For data types that use internal references (for example, thesauruses), the IDs are exported.
• Localized AXF: Instead of IDs, the localized labels are exported for data types that use internal references.
To export strata as a file:
1. Load an asset that includes annotated strata in the Logging pane.
2. (For CSV export) Select the stratum whose information you want to export and apply a filter to the segments, if needed.
3. Click the Export button.

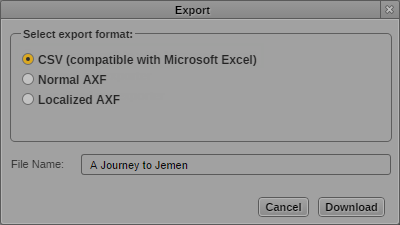

The Export dialog box opens.
4. Select the export format: CSV, Normal AXF, or Localized AXF.
5. Type a file name. You do not need to add an extension.
6. Click Download.
The file is saved to your default download folder.
The dialog box remembers the format you selected. This format is automatically selected the next time you open the dialog box.
Depending on the region, when you open the exported CSV file in Microsoft Excel you might need to change the used delimiter in Excel’s Text Import Wizard.
