MediaCentral | UX User’s Guide : Searching for Assets : The Search Bar

The Search Bar

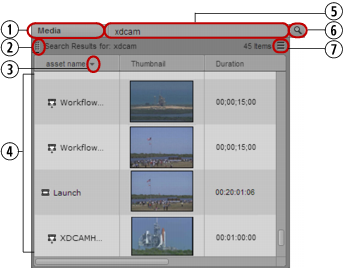

The Search bar in the top right corner of the application window has a menu that you use to select the type of asset, a text field in which you can enter search criteria, and a Search button you click to conduct the search.
When you use the Search bar, the results appear as a list under the Search bar. By default, the search uses the federated search.
You can adjust the size of the Search bar and the results by clicking and dragging the edges or corners.

1
Assets menu
5
Search Text field
2
Detach Search icon
6
Search button
3
Sort arrow
7
Pane Menu button
4
Search results


After you perform a search, you can display the results in a Search pane, and then use the advanced search criteria to refine and speed up your search.
To display search results in a pane, do one of the following:
*Click the Detach Search icon and drag the bar into any area in the MediaCentral UX window.
*Click the Pane Menu button and select Detach Search.
